Corsair Padlock 2

Apr 3rd, 2010 | By Simon

«»

Setting User PIN
Out of the box the Padlock 2 operates like any other USB flash drive on the market. To take full advantage of the Padlock 2′s security features and why you probably bought the device, you need to create a personal identification number (PIN) to secure your data. The process is quite simple and is covered in depth by the User Guide and in a YouTube video created by the folks at Corsair.

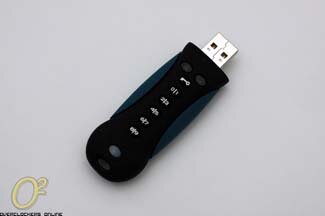

Corsair Padlock 2

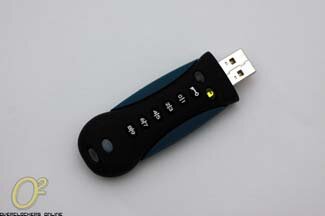

To set the PIN, press and hold the KEY button for 3 seconds. Both red and green LEDs will illuminate.

Corsair Padlock 2

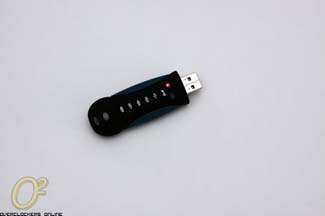

Enter desired PIN using the PIN keys. A user PIN may be 4 to 10 digits long. Both red and green LEDs will blink once and then remain lit.
Press and hold KEY button. Both red and green LEDs will blink in unison.
Re-enter your PIN to confirm.
Press and release KEY button. Green LED will flash.

Corsair Padlock 2

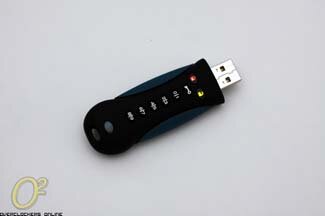

If your PIN doesn’t match or you don’t do anything, the drive will secure itself.

Corsair Padlock 2

Unlocking your Padlock 2 using a User PIN
You can plug the Padlock 2 into your USB drive but if you don’t key in your PIN it will remain secure and the files will not be viewable. Read and write access is only granted after you unlock the drive.

Corsair Padlock 2

Press and release the KEY button. Both red and green LEDS will blink in unison.
Enter your user PIN using the PIN keys.
Press and release the KEY button. Green LED will blink for 20 seconds.

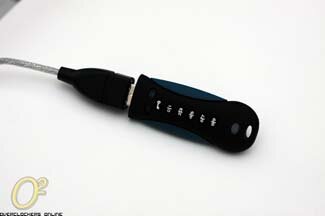

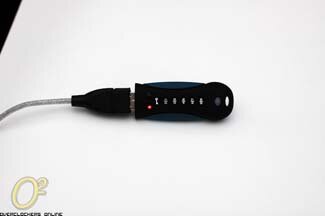

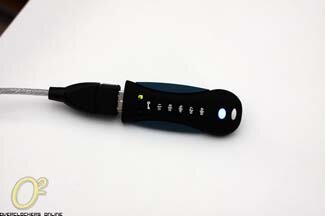

Insert drive into USB port. Green LED will remain lit while unit is connected to USB port. The Blue LED will indicate drive activity.

Corsair Padlock 2

If your pin is incorrect, the Padlock 2 will secure itself.

Corsair Padlock 2

Locking your Flash Padlock 2
The Padlock 2 will self-lock once removed from the USB drive.

Keeping your Padlock 2 Unlocked
It is quite possible that you will be transferring data from one machine to another; it would not make sense for you to have to enter the PIN every single time. As such, Corsair has devised a method to keep the drive unlocked.

Unlock your Flash Padlock using directions earlier in Unlock your Flash Padlock.
Press and hold the KEY button for 3 seconds. Both red and green LEDs will illuminate
Release KEY button.
Press and release KEY button. Both red and green LEDs will blink in unison.
Press and release KEY button. Green LED will blink.

I won’t cover the details on changing your user PIN, creating a master PIN that allows you to change your primary user PIN or how to wipe the drive clean and reset the Padlock 2 to the factory state. Those details can be found in the user guide.

«»
