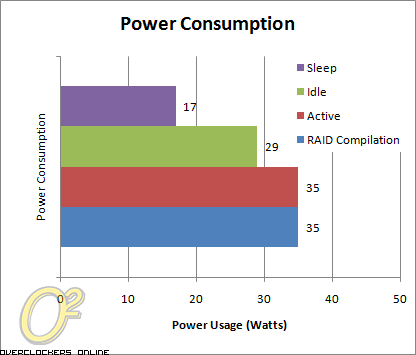

There’s not a whole lot to this page but I’m always interested in knowing what the power draw is on my new toys. I plugged the power brick into my power meter and took several readings. The RAID Compilation draw is measured when the TS-259 Pro was configuring the two drives into RAID 1. The active case was when I was running the ATTO benchmark. The Idle load was when my system was on with no disk activity. The sleep condition was taken when my computer was shut down but power to the TS-259 Pro was left on.

The QNAP TS-259 Pro is basically a small computer with the Intel Atom process and the power consumption shows that. The power consumption while sleeping is 17W and the peak load is 35W. On average I would expect you to be using about 30W, the same amount of a laptop if it didn’t have a LCD monitor.
